Cam Software
CamTrax64 helps the designer create solid models of virtually every type of cam with the dynamic motion control parameters your system requires. During the design, CamTrax64™ generates charts when linked with Excel and adds a profile list to your drawing.  Camnetics, Inc. is dedicated to providing the design engineer with accessible software for developing high speed machine cams!

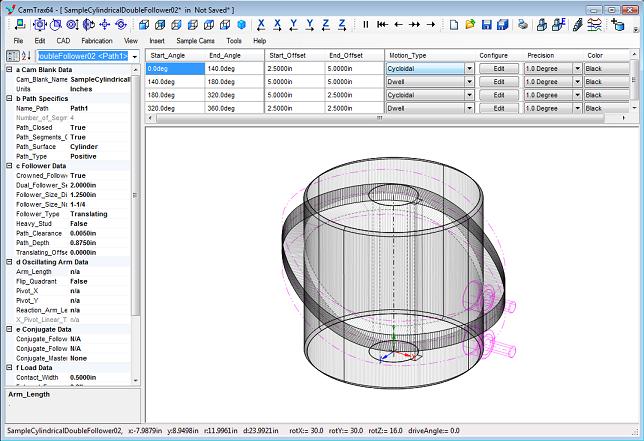

CamTrax64™ standard cam types include cylindrical cams, plate (aka disk) cams and linear cams.  Choose the follower type that the design requires; on center translating, off center translating and oscillating (swinging arm).  Selecting different motion synthesis is a snap with CamTrax64.  Choose between virtually any standard cam motion with a couple mouse clicks.  With Excel the designer can analyze the cam motions and compare different motion synthesis.  Don't have Excel?  Output can also be to a text file!  Charted are displacement, velocity, acceleration, pressure angle, cam shaft torque, radius of curvature, contact stress and normal force.

PDF of CamTrax64 screen shots

Media page

Download CamTrax64



Cam Types:
- Cylindrical (Barrel)
- Segment Cams
- Disk
- Linear
Follower Types:
- On center translating
- Double cam followers
- Conjugate paths
- Off center translating
- Oscillating (Swinging) arm
Motions:
- Cycloidal*
- Harmonic*
- Modified Sine*
- Modified Trapezoid
- Cycloidal/Harmonic*
- Harmonic/Cycloidal*
- Constant Velocity
- Terminal Velocity
- 3-4-5 Polynomial
- 3-4-5-6 Polynomial
- 4-5-6-7 Polynomial
- 8th Power Polynomial
- Constant Acceleration
- Double Harmonic
- User points
- *Symmetry (n) is configurable.
Numerical Tables and Graphs
- Displacement
- Velocity
- Acceleration
- Pulse (jerk)
- Pressure Angle
- Cam Shaft Torque
- Contact Stress
- Normal Force
- Radius of Curvature
Fabrication:
- The fabrication module creates NC code for your 3 and 4 axis machine tools.

Pricing

Description - effective September 1st 2016

Price
CamTrax64 software (optional yearly support & maintenance) Quantitiesof 1
$1995 ($250)
CamTrax64 software (optional yearly support & maintenance) Quantities of 2
$1895 ($225)
CamTrax64 software (optional yearly support & maintenance) Quantities 3 or more
Contact Camnetics or your CAD reseller

SneakerNet License fee*

$695
Network License fee*
$1095
SNL Facility License fee*
$1495
Educational per license
$95
Network educational packages - Please contact Camnetics, Inc.
* Contact Camnetics for annual renewal fees
