Worm Gear Options

Allows you to customize Worm Gear Annotations for drawings.

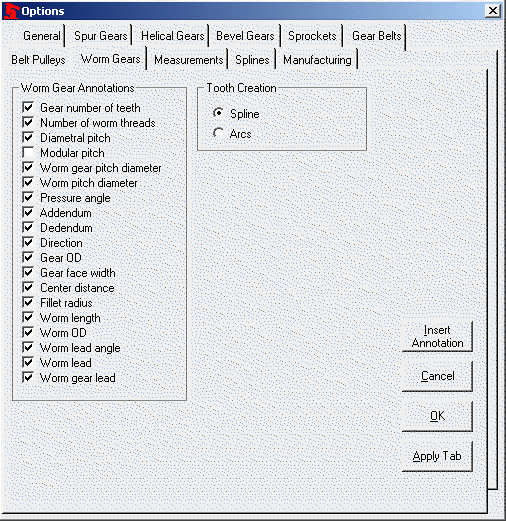

To set options:

·                Click Tools, then Options.

·                Select the Worm Gears tab.

·                Selecting a Class option from the drop down box will “check” the appropriate boxes for that standard.

·                Add or subtract from the check boxes for the desired annotations when adding a note on a drawing. These options are not saved with the part file and will need to be set at the time the note is created on the drawing.

·                To create the tooth profile with a spline, select the Spline option or select the Arcs option to create the tooth profile with a series of arcs.

·                Click OK to accept the changes; click Cancel to discard the changes and exit the dialog box; click Apply Tab to accept the changes for this tab only.

·
