Allows you to customize Spline Annotations for drawings and how the tooth profile is created.

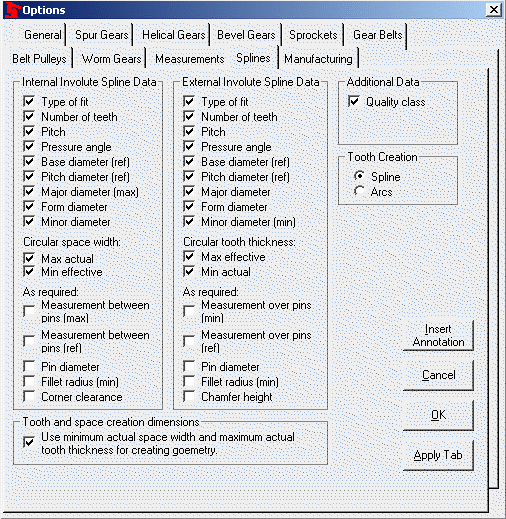

To set options:
· Click Tools, then select Options.
· Click on the Splines tab.
· The involute spline tooth cut may be created with splines or a series of small arcs. Select the appropriate option button.
· Add or subtract from the check boxes for the desired annotations to be added to the note on a drawing. These options are not saved with the part file and will need to be set at the time the note is created on the drawing.
· Click OK to accept the changes; click Cancel to discard the changes and exit the dialog box; click Apply Tab to accept the changes for this tab only.
