Setting the Length Units

The GearTrax length setting is determined by the current SolidWorks default length setting. The GearTrax setting may be changed without regard to the SolidWorks setting.

To set the Length Units:

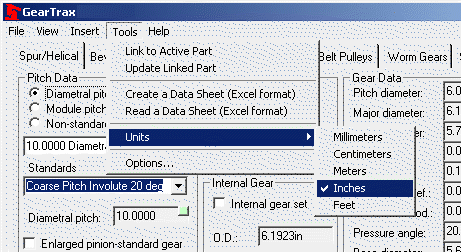

·                Click the Tools option from the pull down menu, and then select Units.

·                Click the appropriate length unit.

·                This will set the length unit of GearTrax and will change the SolidWorks part unit setting when a new part is created.
