Select Company Standards for Addendum, Clearance and Fillet Radius Coefficients

Allows you to specify three company standards.

To set standards:

·                Click Tools, then select Options.

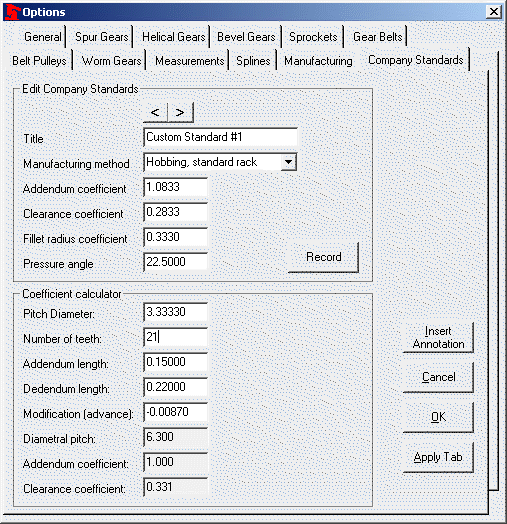

·                Click on the Company Standards tab.

·                Use the arrow buttons to index through the three different standards.

·                Change the title of the standard, if desired.

·                Select manufacturing method to be the default for the standard

·                Input the values for

o                                Addendum coefficient

o                                Clearance coefficient

o                                Fillet radius coefficient

o                                Pressure angle

·                Press the record button or index to the next standard.

·                These standards will be available for spur and helical gears.
