Inserting a Tooth Profile Sketch

With GearTrax you can add multiple teeth to a single part.

To insert a gear or involute spline tooth profile:

·                In GearTrax configure the gear or involute spline.

·                Start a new sketch In SolidWorks.

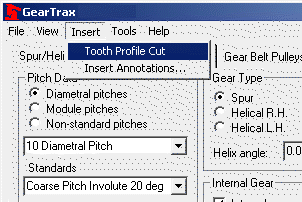

·                From the GearTrax menu select Insert then Tooth Profile Cut.

·                After the tooth cut geometry has been created by GearTrax, manually extrude cut the sketch using SolidWorks.

·                Pattern the tooth cut using SolidWorks.
