Creating an Enlarged Pinion with a Standard Gear

You can model an enlarged pinion that will interact with a standard gear.

To create an enlarged pinion:

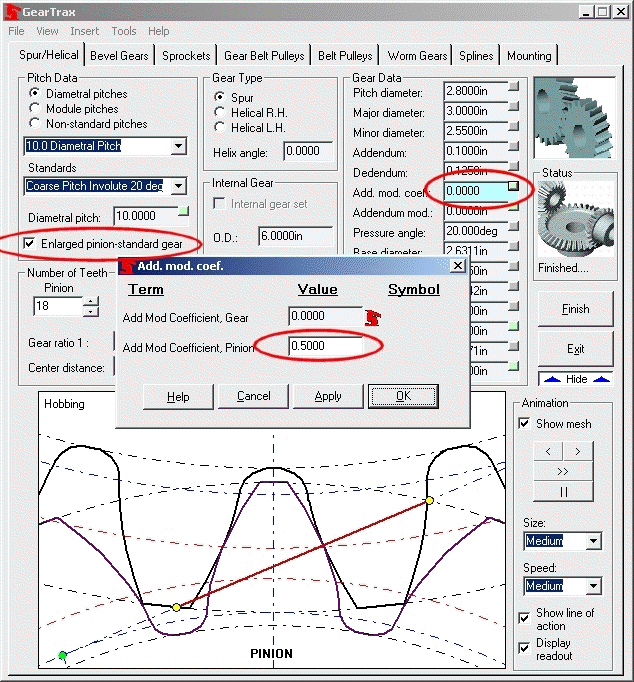

·                Select the Enlarged pinion-standard gear check box.

·                GearTrax calculates the addendum modification for the pinion if the center distance is manually changed. Otherwise the addendum modification or addendum modification coefficient must be provided. Click the more information box in the upper right hand corner of the Addendum modification text box. This will allow you to edit the value of the addendum modification.
