Creating a Gear Belt Pulley

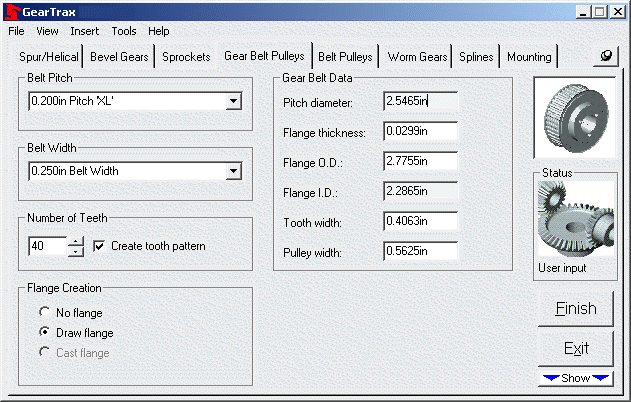

To create a gear belt pulley:

·                Select the desired belt pitch from the drop down box.

·                Select the appropriate belt width.

·                Enter or use the spin box to change the number of teeth. Note that the pitch diameter changes with the belt pitch and the number of teeth. The pitch diameter is a driven dimension.

·                Check the Draw Flange if flanges are desired.

·                Check the Create Tooth Pattern if you want the tooth to be patterned.

·                Make any necessary changes to the Hub Mounting.

·                Click on the Finish button to complete the pulley.
