Creating a Belt Pulley

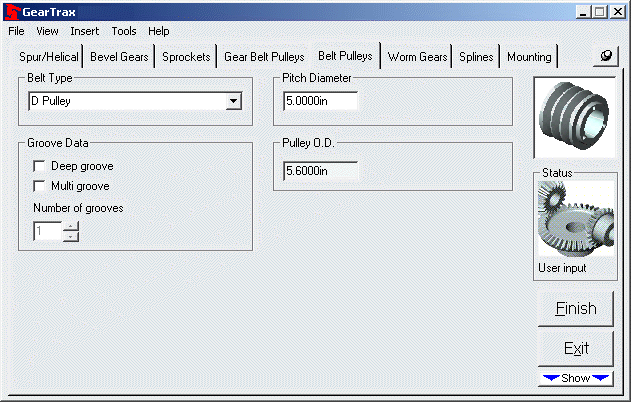

To create a belt pulley:

·                Select the desired Belt Type from the drop down box.

·                Check the Deep groove box if so desired.

·                Placing a check in the Multi groove check box enables the Number of grooves input box.

·                Enter a value or use the spin control to change the number of grooves to be drawn.

·                Enter a value in the Pitch Diameter box.

·                The Pulley O.D. value is a driven dimension.

·                Make any necessary changes to the Hub Mounting.

·                Click on the Finish button to complete the gear.
